- Rhino
- Helix
- Helix Y
- Neo +
- Orbitur+
Series: 2050 | 2070 | 2550 | 2570 | 3050 | 3070 | 3120

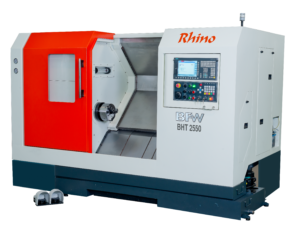

- "HTL Rhino platform developed for heavy-duty applications & superior cutting performance. Suitable for medium to large size components. Built with slant bed structure & rigid castings to ensure consistent accuracies on heavier cuts. Right turning platform for high precision heavy cutting jobs."
Features: - Single piece bed cum saddle
- A2-6 spindle - Rhino 2050/2070 with 65mm bar capacity
- A2-8 spindle - Rhino 2550/2570 with 75mm bar capacity
- A2-11 spindle - Rhino 3050/3070/3120 with 90mm bar capacity
- Larger spindle bore dia 105mm for Rhino 3000 series
- 8 station Hydraulic turret
- Auto door
- Enabled for Automation
- built-in center for tailstock for Rhino 3000 series
- Innovative design for tramp oil separation
- Maximum turning dia 600mm for Rhino 3000 series

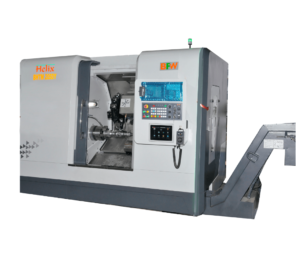

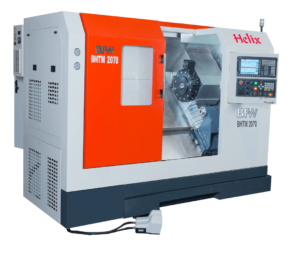

Series: BHTM 2050 | BHTM 2070 | BHTM 2550 | BHTM 2570BFW’s HTL series of Helix turn-mill series represents the premium class of universal turning centers. Guarantees perfectly milled surfaces, even for complex work pieces. Consist of 12-station servo Driven Tool Turret which is able to perform milling, drilling, boring turning in a single set-up time which improves productivity and accuracy of the component.
Wide range of multi-process machining applications to meet the requirement of heavy engineering industries for High-end solutions such as Earth Moving, Automobile, Valves Etc.- Single piece slant bed 45 deg for
- Helix & 30 deg for Helix Y
- A2-6/ A2-8 spindle
Highest bar capacity 65/ 75/ 85 - 12 station servo turret, BMT 65
- Live tool power 3.7 & 4.5 kW, 4000 rpm
- Auto door
Enabled for automation - Innovative design for tramp Oil separation in Helix series

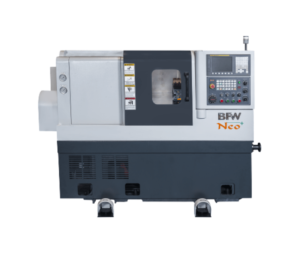

Series: Neo+ | Neo 2050
HTL series of Neo turning centers are designed with Unrivalled Rigidity, High Productivity & Reliability to enhance unmatched flexibility for wide variety of part configurations. Developed to meet the requirements of job shops as well as mass production

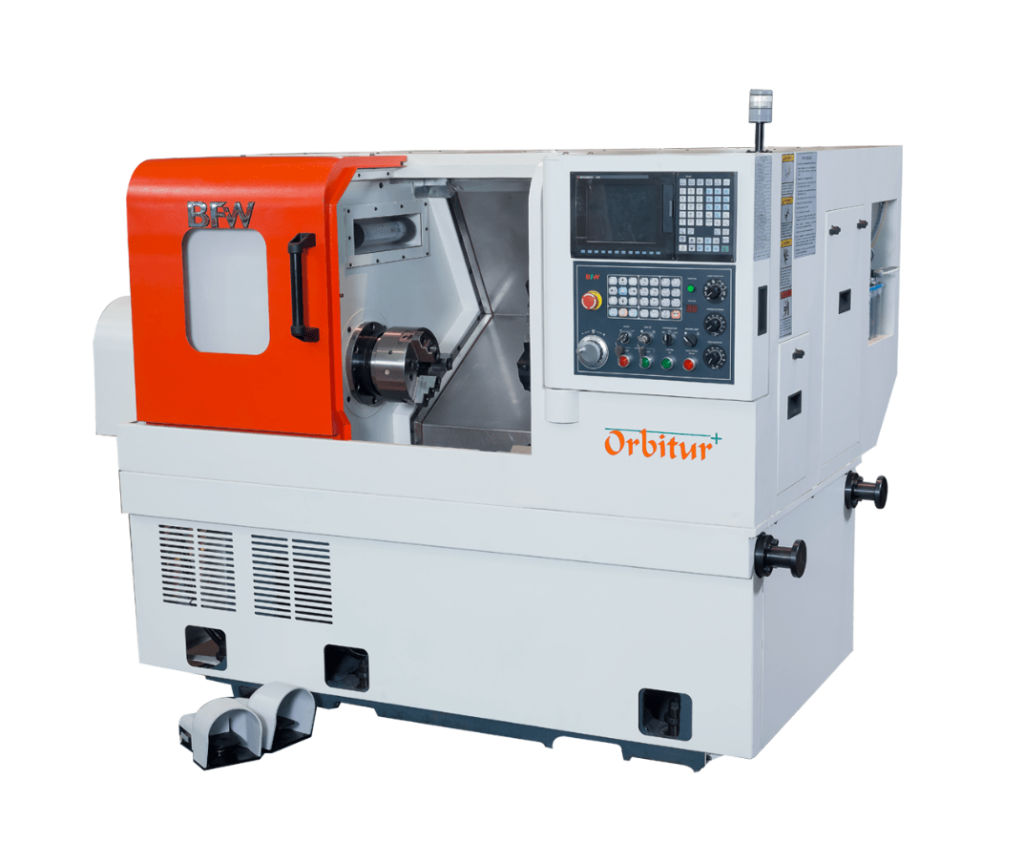

Series: Orbitur | Orbitur+
HTL series of Orbitur turning centers are designed with Unrivalled Rigidity, High Productivity to enhance unmatched flexibility for wide variety of part configurations. Developed to meet the requirements of job shops as well as mass production.- Compact foot print,
- Ideal for line setup
- Guides for X & Z axes
- High precision ball screws for X & Z axes
- Enabled for Automation
- Innovative design for tramp oil
- separation for lesser running cost
